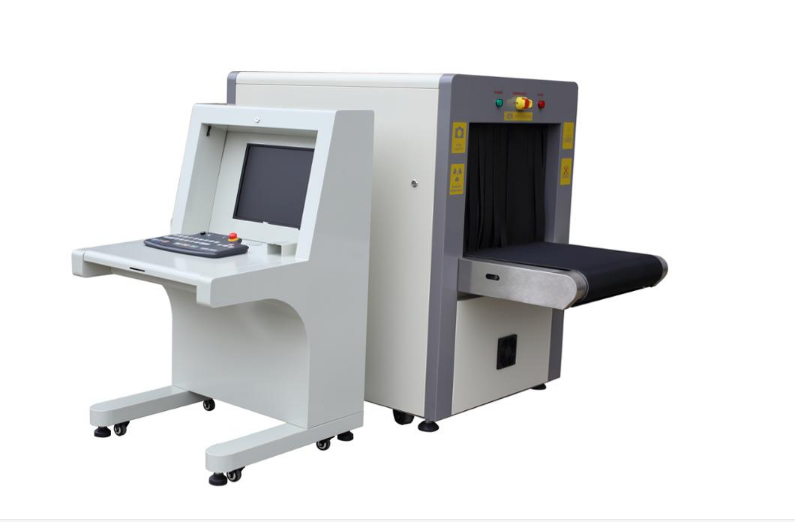

Conveyor Security X Ray Inspection System , Luggage Scanner X Ray Machines At Airports
Technical Specifications
• Tunnel Size:650(W)*500(H)mm
• Power Requirement::220VAC(±10%)50±3Hz
• Power Consumption:1.0 KW (max)
• Noise: <55db
• Conveyor Speed:0.22m/s
• Conveyor Max Load:100kg
• Sensitivity: 42WG Typical, 40WG Guaranteed
• Spatial Resolution: 1.0mm Horizontal and Vertical
• Penetration resolution: dia 0.254mm
• Penetration: 34mm Steel Typical, 32mm Guaranteed
• Dose per Inspection: < 1.4μGy/h
• X-ray Leakage:0.0μGy/h (at a distance of 5cm From external housing)
• Film Safety: Guarantee ISO1600 Film
X-ray Generator Specifications
• Voltage: 100KV to 160kv
• Tube Current: 0.4mA to 1.2mA
• Cooling: Sealed Di-Electric Oil Bath with Forced Air.
• Duty Cycle: Rated for 100% Duty Cycle
• Beam Direction: Upward
• Beam anger:80 degree
• Detector: 1024 Channels in an L-Shaped Array
Image Display
• Single 17’’ High Resolution, low Radiation, Ergonomic LCD Color Monitor
• Display Resolution: 1280*1024; 24 bit/pixel Color
• Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
• Image storage:60000 pictures in real time
• Zones & Zoom:1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
• Processing: Edge enhancement, image strengthening, image lightening, reducing darkening,image returning, image retrieval.
• Multi-Energy (M) color material identification: Organic objects in orange, inorganic objects in blue, mixture in green
Environmental Specifications
• Operating Temperature: 0°C-45°C
• Storage Temperature:-20°C-60°C
• Humidity: Up to 95% Non-Condensing
Computer Specifications
• Processor: Intel(R)Dual CPU 2.0
• Memory: 1GB RAM
• Storage: 160GB HDD
• Video Card: 256 Video Card (digital Display)
• Platform: Windows XP Pro
Standard Features
• Auto Image Archiving
• Baggage Counter
• Color and Black/ White Imaging
• Density Alert
• Edge-Enhancement Imaging
• High Penetration
• Image Annotation
• Image review
• Manual Archive (bitmap)
• Suspect Image Archive
• Operation Training Program
Picture Perfect
Print Image
Programmable Penetration
Programmable Contrast
Pseudo Color
Reverse Monochrome
Real-Time Image Manipulation
User Defined Access
Zoom 2X to 64X
High-energy/low energy: Switch from high energy to low energy
Assist to detect drug and explosive powder
Sound and light alarm;
l Protective cover on lead curtain to avoid lead pollution;
l Real time continuous self diagnostics
Physical Specifications
• Tunnel Opening: 650mm W* 500mm H’
l6550 Dimensions
1980mm L *880mm W *1280mm H (Main machine, exclude monitor)
630mm L * 900mm W *1220mm H(Operation counter)
1000mm L * 655mm W * 650mm H (Extension Exit Roller table)
6550 Crate Dims:
2010mm L *910mm W *1310mm H (Main machine, exclude monitor)
660mm L * 930mm W *1250mm H(Operation counter)
1030mm L * 685mm W * 680mm H (Extension Exit Roller table)
Gross weight: 700kgs
