you can tell us the mod you need then we can offer you more details .
| Technical Parameters |
| Power Supply | 220V/AC 110V/AC |
| Power | <30V |
| External Dimension | 2200mm(H)*820mm(W)*550mm(D) |
| Passageway Dimension | 2000mm(H)*700mm(W)*550mm(D) |
| Work environment | -20°C- +45°C |
| Standard | GB15210-2003<WALK THROUGH METAL DETECTOR> |

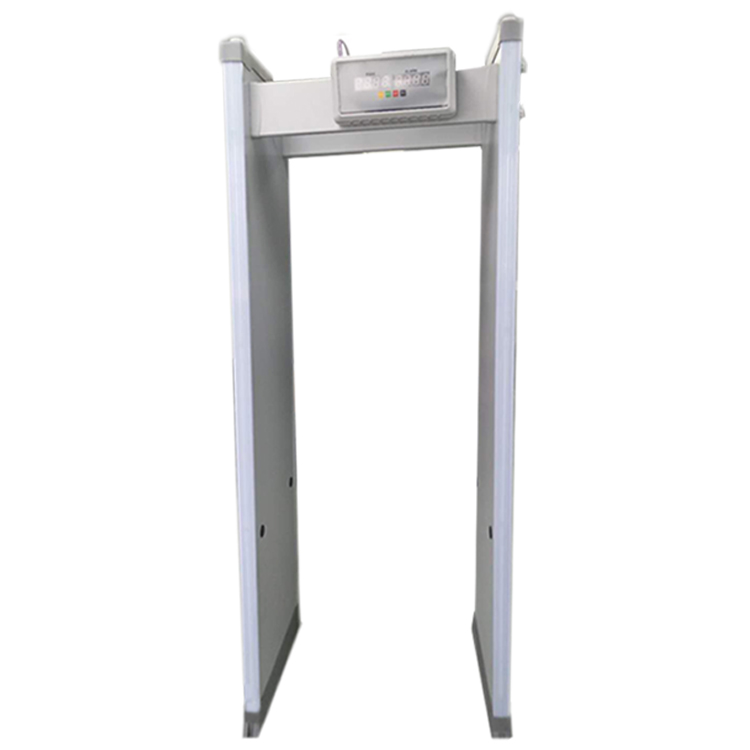

Features:
Easy Assembly
Modular design allows for a quick and easy assembly, only 4 screws to mount it.
Pinpoint Detection Zones
there are different distinct pinpoint detection zones for full target coverage on the left, centre and right side of the body from head to toe
Traffic Lights
on the entrance of the archway ,there are traffic light to remind you the detector is ready for passenger.
Audible and visual alarms
there is audible alarm and visual LED lights signal when a target has been detected ,the pinpoint lights on the exit gatepost will show the location of any offending object.
Touchpad controls
The access control panel is designed for use by authorized personnel with specific, multi-level security codes.it allows authorized users to change settings.
Self-test
no battery is required for memory retention.while the unit is in operation,a self-test is performed , any failures or problems will be immediately reported on the LCD display
Specifications:
1)operating temperatures
-20`C to +70`C;humidity:to 95% non-condensing
2)power fully automatic 100 to 240VAC,50 or 60 hertz,5watts;no rewiring, switching or adjustments required
3) weatherproofing/foreign object protection standards meet IP55,IEC standard.
4)traffic counter
counter count the number of passenger that have passed through the detector, the number of alarms and calculates alarm percentage
5)synchronization
dual channels and DSP circuit allow several to operate simultaneously in close proximity to another
6)alarms
audible tone and volume adjustable.bright LED visual alarm
7)target pinpoint lights
thirty-three distinct zones are displayed with two independent columns of LED' located on exit side of the gate
Dimensions
overall sizes(cm):224(height)x90(width)x58(depth)
size of alley(cm):224(height)x76(width)x58(depth)
Net Weight:68kg
shipping size(cm): 227x73x22 (side panel ) 80 x 59 x28cm (control box)
shipping weight: 80kg
rports and Seaports
· Government Buildings
· Embassies
· Police Facilities
· Courthouses
· Prisons and jails
· Military Bases
· Hospitals
· Banks
· Financial Institutions
· Colleges and Schools
· Hotels and Casinos
· Power plants
· Research Sites
· Sports Stadiums
· Public Transportation
· Public Landmarks
· Factories and Warehouses
· Broadcast Studios
· Museums
if there are any need for you ,please feel free to contact me .
my email: zhonganzhiyuan88@163.com
